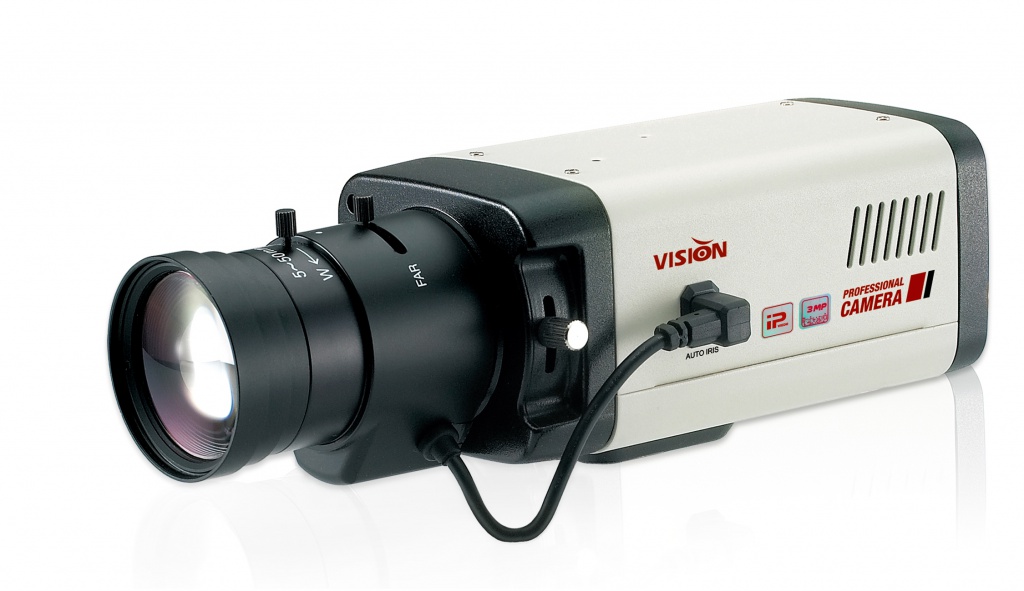

1/2.8" Sony 3MP CMOS, H.264/M-JPEG, 30к/сек(1920x1080), сдвигающийся фильтр (ICR), 1.0люкс, 2DNR, PoE, SD card
| Classification | Specification | |
| General | CPU | 32-bit ARM9 RISC CPU up to 533MHz, 32KB I/D-Cache, MMU |
| Videio Buffer | 16Mbyte Video Frame Buffer | |
| Flash | 16 Mbyte Flash Memory | |
| SDRAM | 256Mbyte | |
| Image Pickup | Image sensor | 3.0 Megapixel 1/2.8" SONY progressive scan CMOS image sensor |
| Total Pixels | 2144(H) x 1588(V) 3.4 Megapixel | |
| Effective Pixels | 2096(H) x 1561(V) 3.27 Megapixel | |
| S/N Ratio | More than 52dB | |
| Min. Illumination | 1 Lux with DSSX2 (F1.2, 30IRE, AGC On) | |
| Day & Night | D/N Output Port, ICR | |
| Lens (Not included) | C/CS Mount, DC Iris | |
| Video | Video compression | H.264 baseline profile, Motion JPEG |
| Resolutions | Up to 1920 x 1080 | |
| Frame rate | H.264 Up to 15fps with 1920x1080 | |
| MJPEG Up to 15fps with VGA (Simultaneous dual stream) | ||
| MJPEG single stream up to 30 fps @ 720p | ||
| Video streaming | Support multi stream with H.264, MJPEG | |
| Adjustable frame rate | ||
| VBR/CBR in H.264 | ||
| Pan/Tilt/Zoom | Digital PTZ | |
| Image setting | Day & Night | |
| ATR-EX(WDR) | ||
| Auto White Balance | ||
| Auto Exposure | ||
| Privacy Mask | ||
| Effect - Color, Sharpness, Mirror/V-Flip, etc. | ||
| Output | BNC x1, 1.0Vp-p, 75 ohm Composite Video, NTSC/PAL | |
| Audio | Audio streaming | Two-way, full duplex |
| Audio compression | G.711 | |
| Sample Rate | 8KHZ | |
| Data Rate | 64Kbps | |
| Audio input | Microphone input /1 x Line-In (Single Mono) | |
| Audio output | Line output/ 1 x Line-Out (Single Mono) | |
| Network | Security | Password protection |
| User access log | ||
| HTTPS encryption | ||
| Supported protocol | HTTP, HTTPS, FTP, SMTP, UPnP, DNS, DynDNS, NTP | |
| RTSP, RTP, TCP, UDP, ICMP, DHCP | ||
| Wireless LAN | IEEE 802.11 b/g/n (for VC58SM3Ti-ICR -U) | |
| System | Intelligent video | Motion detection up to 1920x1080 with 32x24 blocks |
| integration | Alarm trigger | Motion detection |
| External input/Normal Open/Close Type | ||
| Alarm events | File upload via ftp, e-mail | |
| Notification via email, FTP and TCP | ||
| External output activation/Normal Open/Close Type | ||
| Video buffer | 16MB pre-alarm and post-alarm | |
| Recording | Save to SD/SDHC card with event mode and continuous mode | |
| Firmware upgrade | Remote upgrade via network | |
| API | CGI Interface document | |
| ActiveX Interface(ocx(dll) + document) | ||
| Physical | RESET Button | 1 x Factory Reset Button |
| Power Source | DC 12V/1.5A, PoE(Power over Ethernet): 802.3af | |
| Power Consumption | Max. 5.5W | |
| Net Weight | 580g (Camera Only, without Lens) | |
| LED`s | Power, Network Connection | |
| Dimension | 66mm(W) X 57mm(H) X 126mm(D) | |
| Environment | Operating Temperature | -25 degree~50 degree Celsius (-13F~122F) |
| Storage Temperature | -25 degree~60 degree Celsius (-13F~140F) | |
| Software | Included Software | NVR Lite (16 Channel), IP Installer (Windows Only) |
